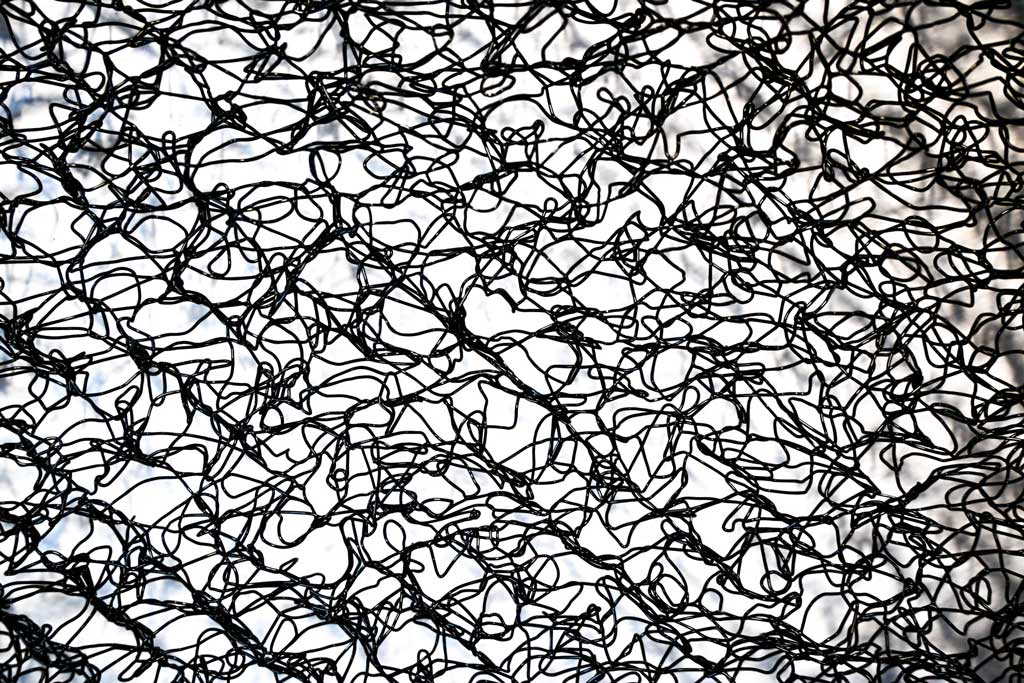

The GroundGuard® Root Reinforcement Mat provides an effective and eco-friendly choice for securing plant roots in all types of erosion prone areas. The tough, black nylon mesh has an open structure which makes a perfect environment for dirt and plants to embed and entangle, permanently securing plant roots in place. Once the root system is established, you have a permanent solution for anchoring vegetation. The GroundGuard® Root Reinforcement Mat is a natural choice for vegetated roof applications requiring soil and root stability.
Applications
- Channels & slopes
- Green roofs/roof gardens
- Sloped or irregular shaped roofs
- High-wind environments
- Eco-habitats
Benefits
- Permanently secures plant roots.
- Enhances plant growth and survival.
- Lightweight and easy to handle.
- Open structure is easy to soil fill.
- Dimensionally stable in warm or cold weather.

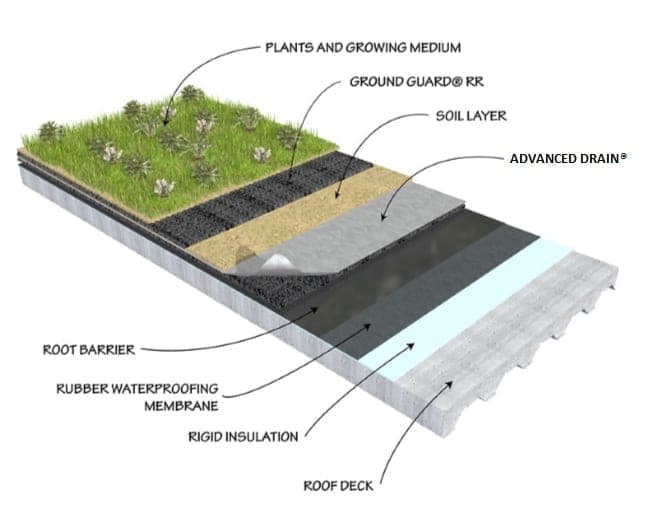

This video explains the proper installation techniques for our Green Roof Products;
Advanced Drain (Formerly known as Watairvent Green Roof), GroundGuard® RR and GroundGuard® VM.
Install green roof drainage mats in accordance with manufacturer’s instructions at locations indicated on the Drawings.
Install root reinforcement mats to allow permanent securing of plant roots in soil.
Butt green roof drainage mats together without overlapping.
Protect installed green roof drainage mats from damage during construction.
| Roof Drainage & Ventilation | Core Material | Thickness | Roll Size | Roll Weight | Piece Per Box | Boxes Per Pallet | Coverage Area | UV Exposure |
|---|---|---|---|---|---|---|---|---|
| Ground Guard® RR | Nylon (Entangled) | .40 in. (10 mm) | 39” X 100’ | 19.5 lbs. (8.85 kg) | 1 | 8 | 36.11 yrds2 (30.19 m2) | 60 Days |
