CedAir-Mat

Additional Information

• Installation Video / Instructions

  • Click to view our 2021 Contractor Installation Guide for Roof Drainage & Ventilation products!

    Install plywood roof sheathing onto rafters. Install roofing felt or ice dam protection membrane over sheathing. Check local codes and manufacturer’s recommendations for specific requirements.

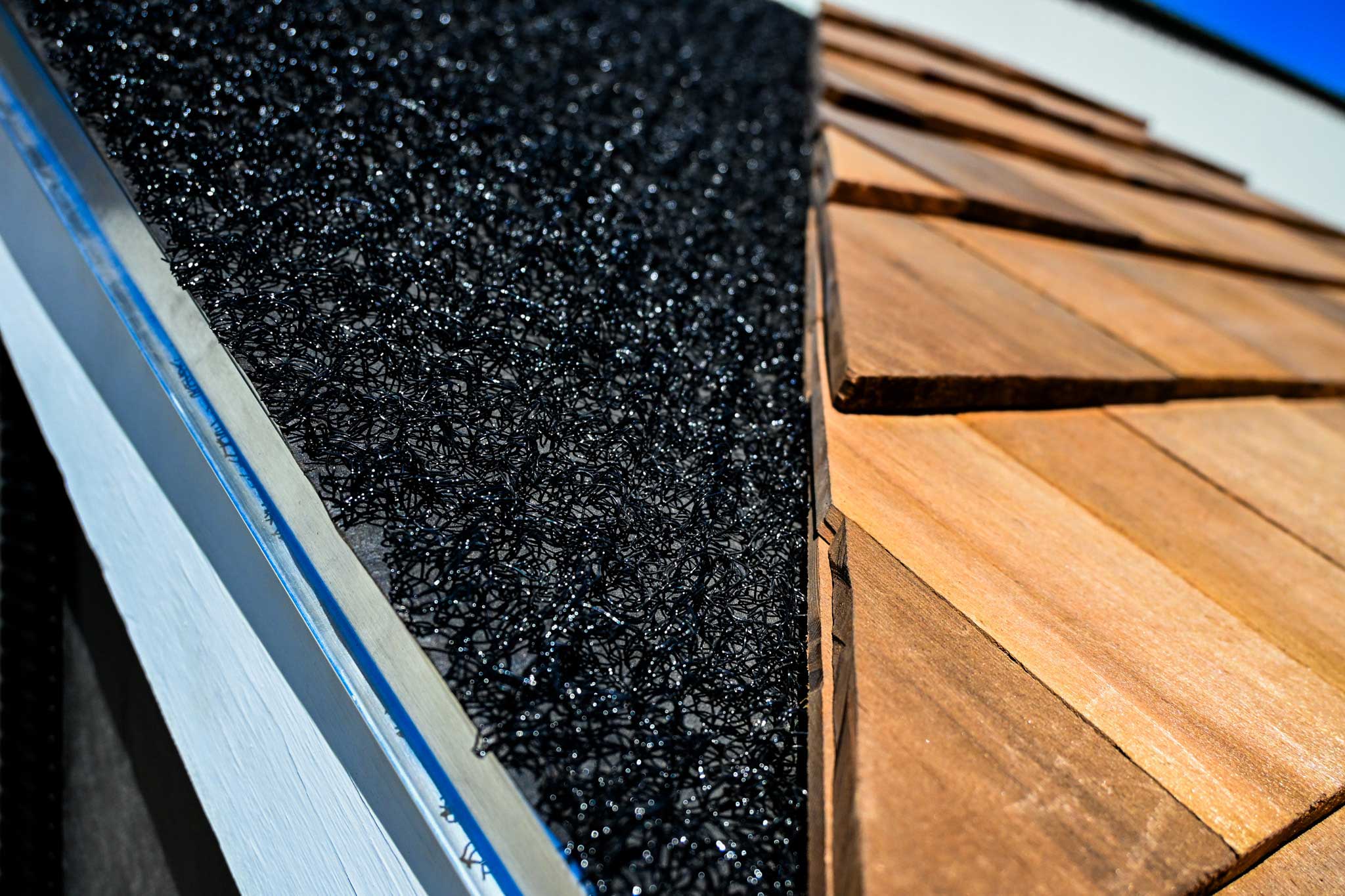

    Install CedAir-Mat® over roofing felt, ice protection membrane, and metal edge flashing or drip edge. Ensure CedAir-Mat® material is installed flush against edge of the flashing or drip edge. Carefully trim the CedAir-Mat® material at all penetrations with a utility knife or scissors.

    When installing cedar or alternate material shingles, unroll CedAir-Mat® horizontally just ahead of the shingles as they are installed. Tack or nail CedAir-Mat® in place every three square feet. Do not overlap the CedAir-Mat® material. Butt each course tightly against the previous course and at vertical seams.

    At ridge locations, extend CedAir-Mat® material over the ridge and butt against the material on the opposite side of the roof. If a ridge vent is utilized, follow the ridge vent manufacturer’s recommendations for underlayment material installation.

    Apply roofing materials using manufacturer’s recommended fasteners and instructions, allowing for the additional 3/8″ thickness of the CedAir-Mat® material.

• Details & Renderings

  •

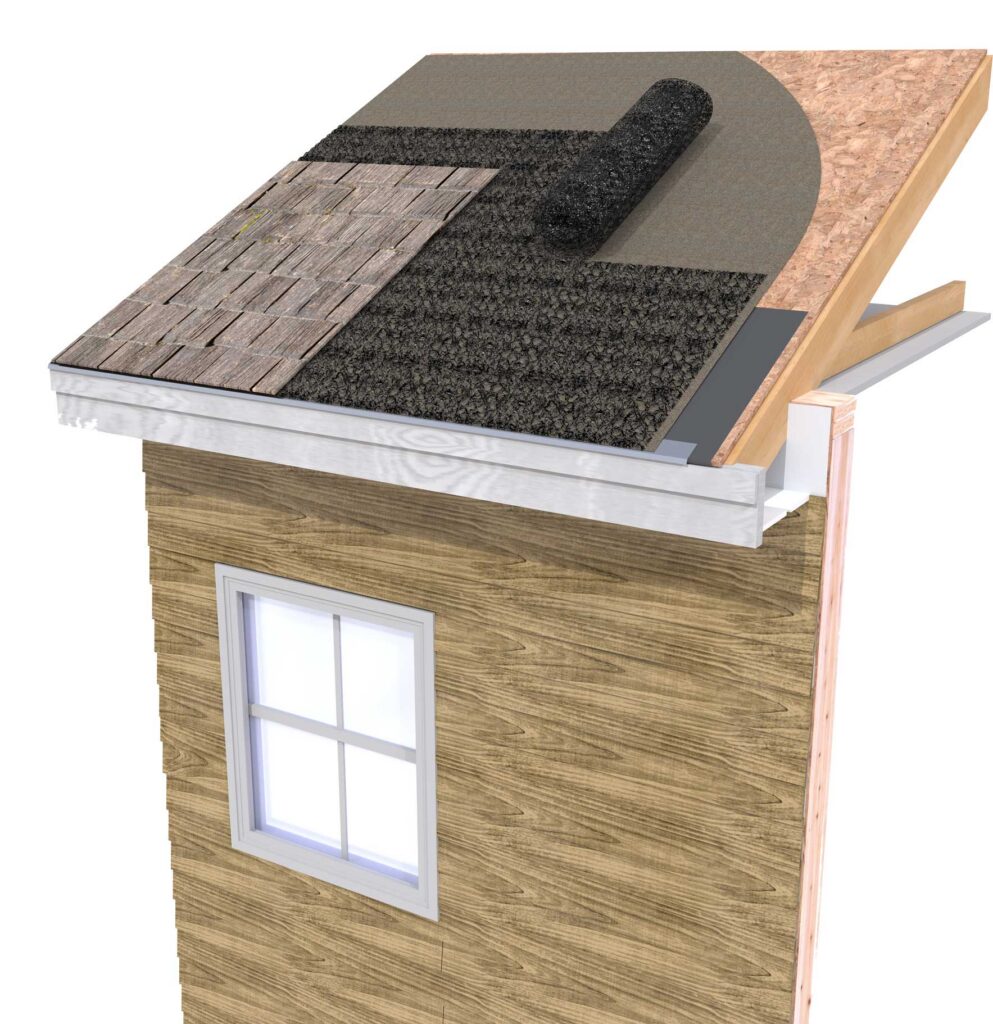

    CedAir-Mat Rendering (With Callouts)

    R-Vent Rendering – Metal Roof (With Callouts)

    Shingle Underlayment Detail

    Shingle Underlayment Detail #2

    Shingle Underlayment (View from top of roof)

    Shingle Underlayment Cutaway

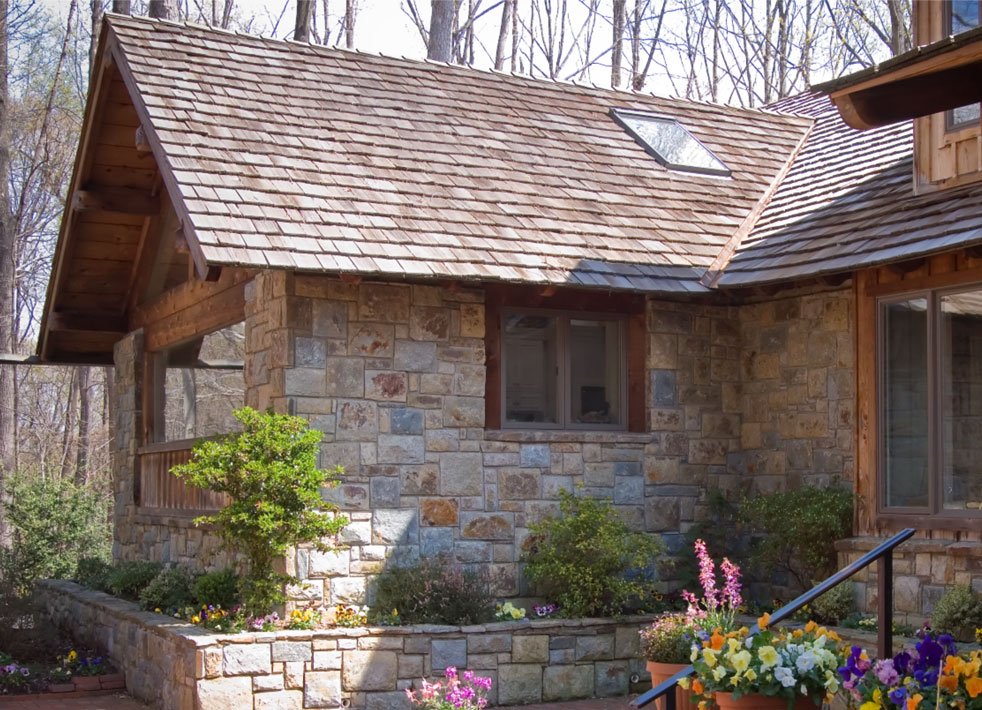

• Jobsite Photo’s

  •

• 3-Part Specification

  • CedAir-Mat – 3-Part Specification

• Data Sheets

  • CedAir-Mat Data Sheet

    CedAir-Mat Data Sheet (French)

    CedAir-Mat Data Sheet (Spanish)

• AIS / SDS / MSDS / LEED Sheets

  • CedAir-Mat AIS Sheet

    CedAir-Mat LEED Sheet – Call 800.252.2306 for more information

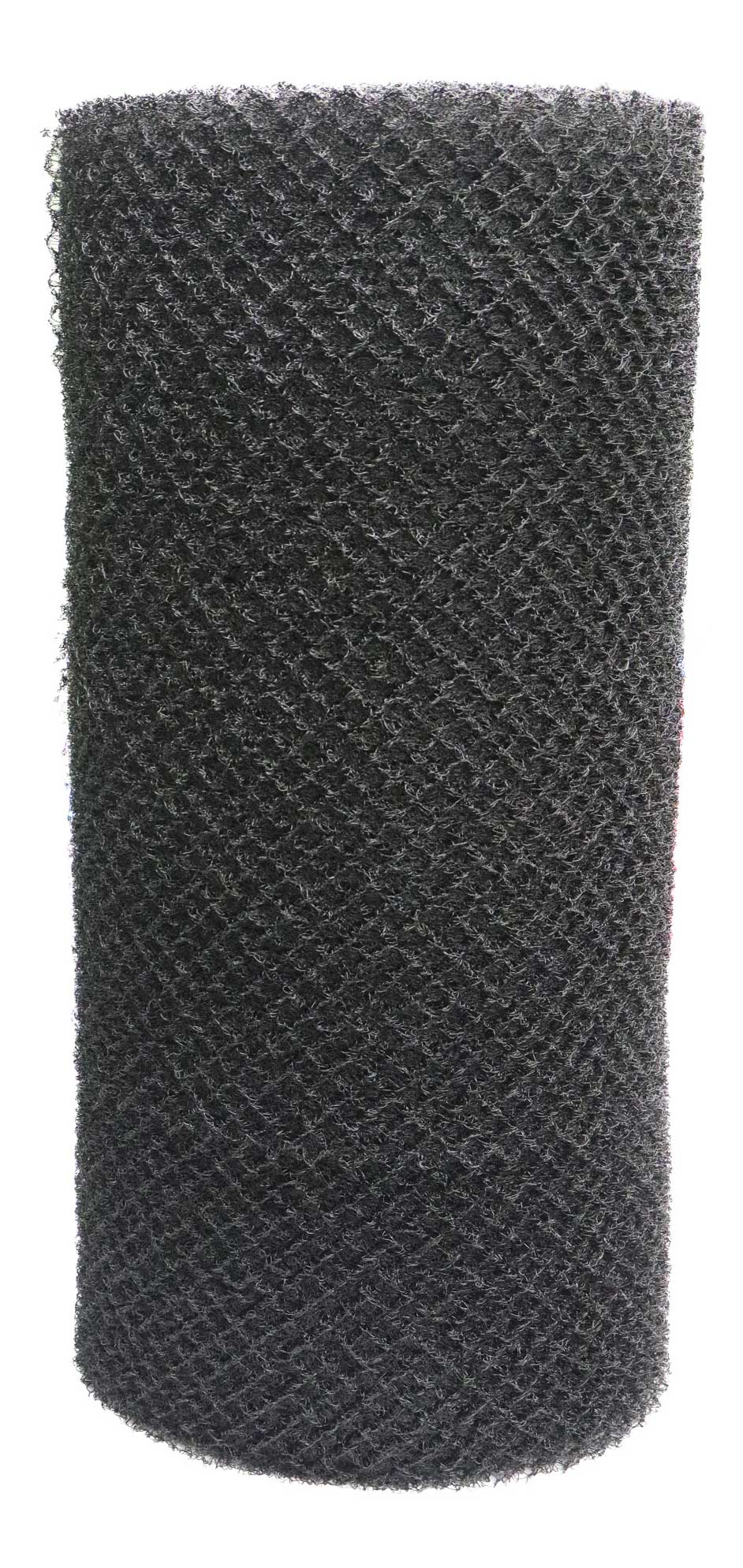

• Packaging

  • Roof Ventilation Products	Thickness	Roll Size	Sq. Ft. Per Roll	Rolls Per Pallet	UOM
    CedAir-Mat®	.40” (10 mm)	39” X 61.5’	200	12	Sq. Ft.

• Warranty

  • Nylon Products Warranty
