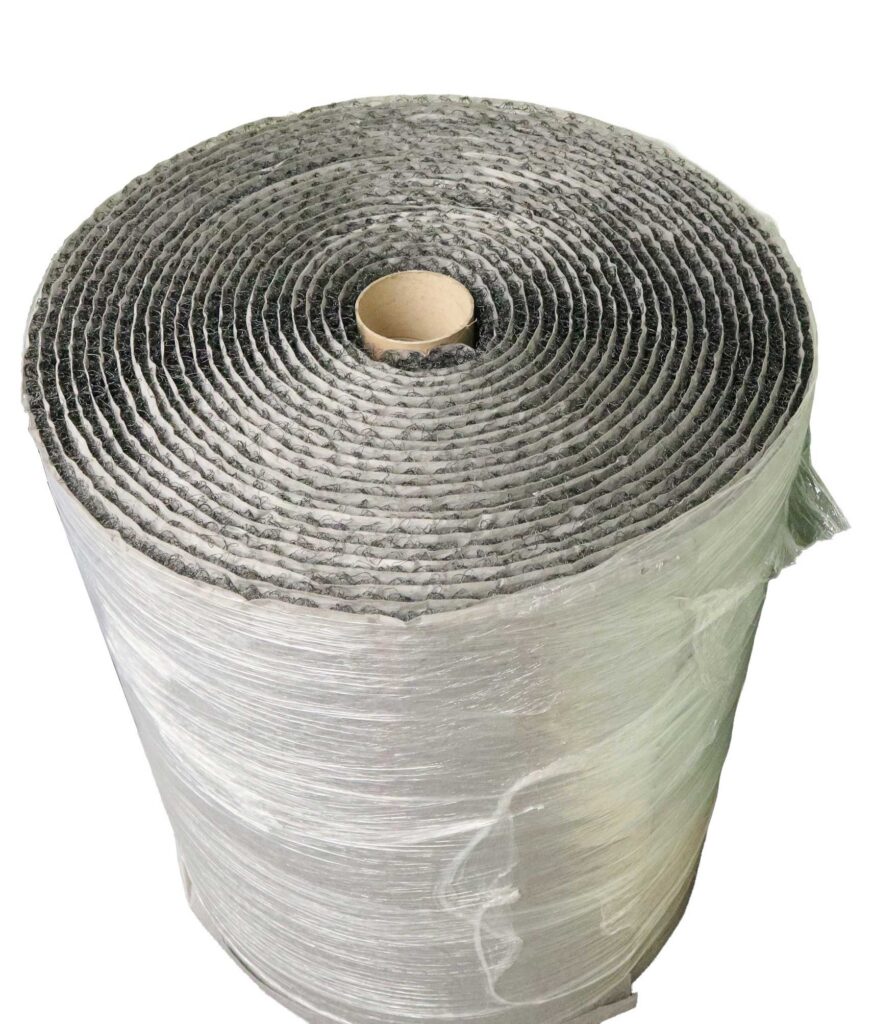

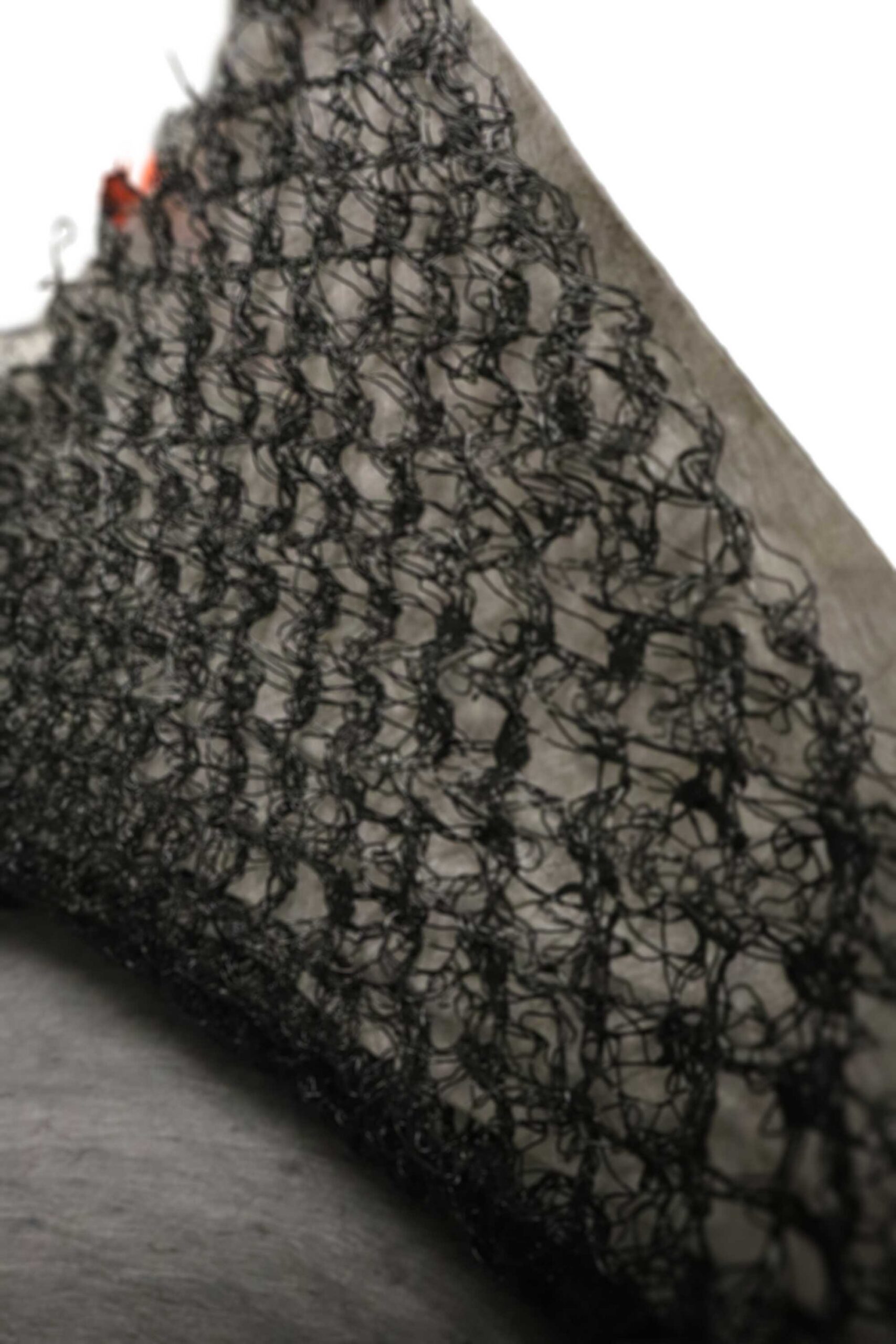

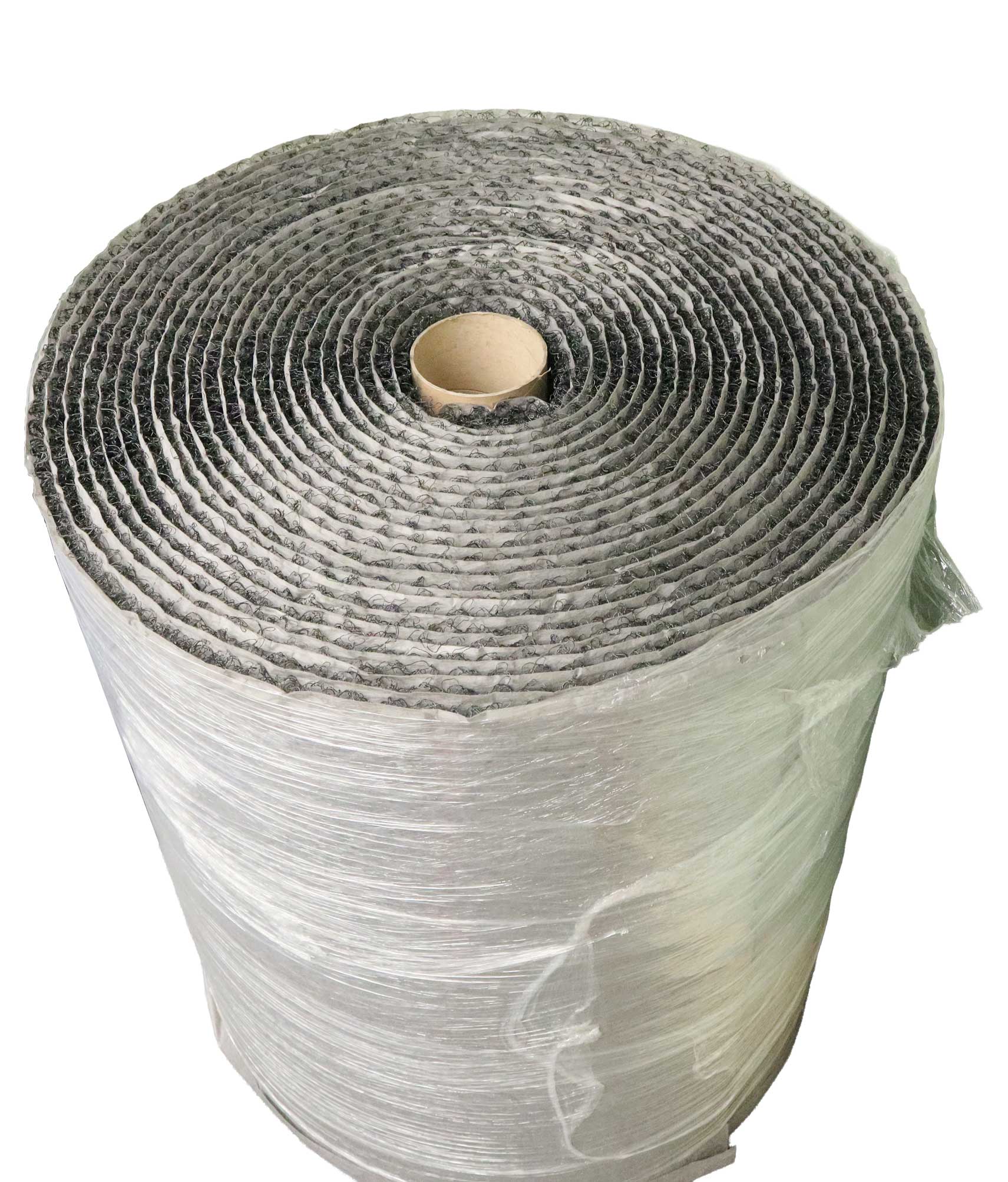

GroundGuard® VM is an eco-friendly growing mat designed for use with pre-vegetated systems requiring extra soil and root stability. Once the root system is established, you have a permanent solution for anchoring vegetation to facilitate transport and installation.
Benefits
- Plants can be grown directly in matting or field-grown off-site in matting.
- Permanently secures plant roots.
- Enhances plant growth and survival.
- Easy to install vertically or horizontally.
- Filter fabric helps hold soil in place.
This video explains the proper installation techniques for our Green Roof Products;
Advanced Drain (Formerly known as Watairvent Green Roof), GroundGuard® RR and GroundGuard® VM.
Install green roof growing mats in accordance with manufacturer’s instructions at locations indicated on the Drawings.
Install green roof growing mats to allow permanent securing of plant roots in soil.
Butt green roof growing mats together without overlapping.
Protect installed green roof growing mats from damage during construction.
| Product | Core Material | Fabric Material | Thickness | Roll Size | Piece Per Box | Boxes Per Pallet | Roll Weight | Coverage Area | UV Exposure |
|---|---|---|---|---|---|---|---|---|---|
| Ground Guard® VM 501 | Nylon (Entangled) | Polyester | .40” (10 mm) | 39” X 100’ | 1 | 8 | 24 lbs. (10.89 kg) |
36.11 yd.2 (30.193 m2) |
30 Days |
| Ground Guard® VM 502 | Nylon (Entangled) | Polyester | .625” (15.875 mm) | 39” X 100 | 1 | 8 | 24 lbs. (10.89 kg) |
36.11 yd.2 (30.193 m2) |
30 Days |
