Additional Information

• Installation Video / Instructions

  • A. Install mortar deflection devices as part of masonry wall construction and in accordance with manufacturer’s installation instructions.

    B. Install in cavities at [all through wall masonry flashings with weep holes.] [locations detailed on Drawings.]

    C. Place deflection strips horizontally and diagonally directly on flashings.

• Details & Renderings

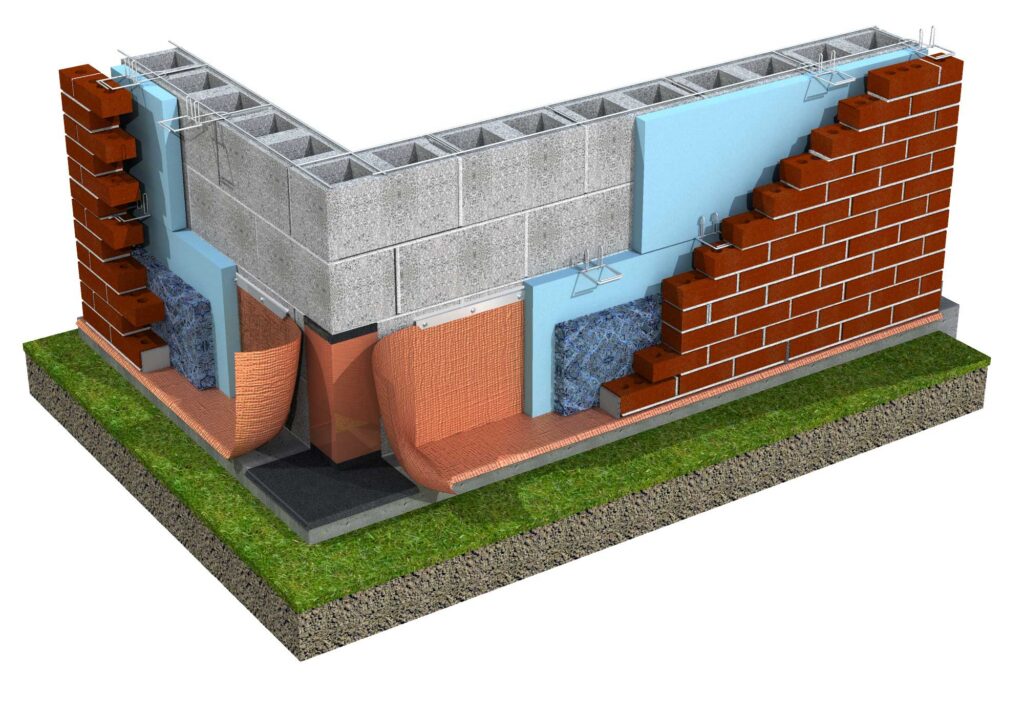

  • Cavity Wall – Inside Corner

    Cavity Wall – Outside Corner (With Mortar Break)



    Cavity Wall – Base

    Cavity Wall – Window Head



    Cavity Wall – Shelf Angle



    Cavity Wall – Steel Beam



    Cavity Wall – Metal Stud with Brick





• Jobsite Photo’s

  •

• E-Submittal
• 3-Part Specification

  • Mortar Break & Mortar Break II Specification

• Data Sheets

  • Mortar Break & Mortar Break II Data Sheet

    Mortar Break & Mortar Break II Data Sheet (Spanish)



• AIS / SDS / MSDS / LEED Sheets

  • Mortar Break AIS Sheet

    Mortar Break LEED Sheet

• Packaging

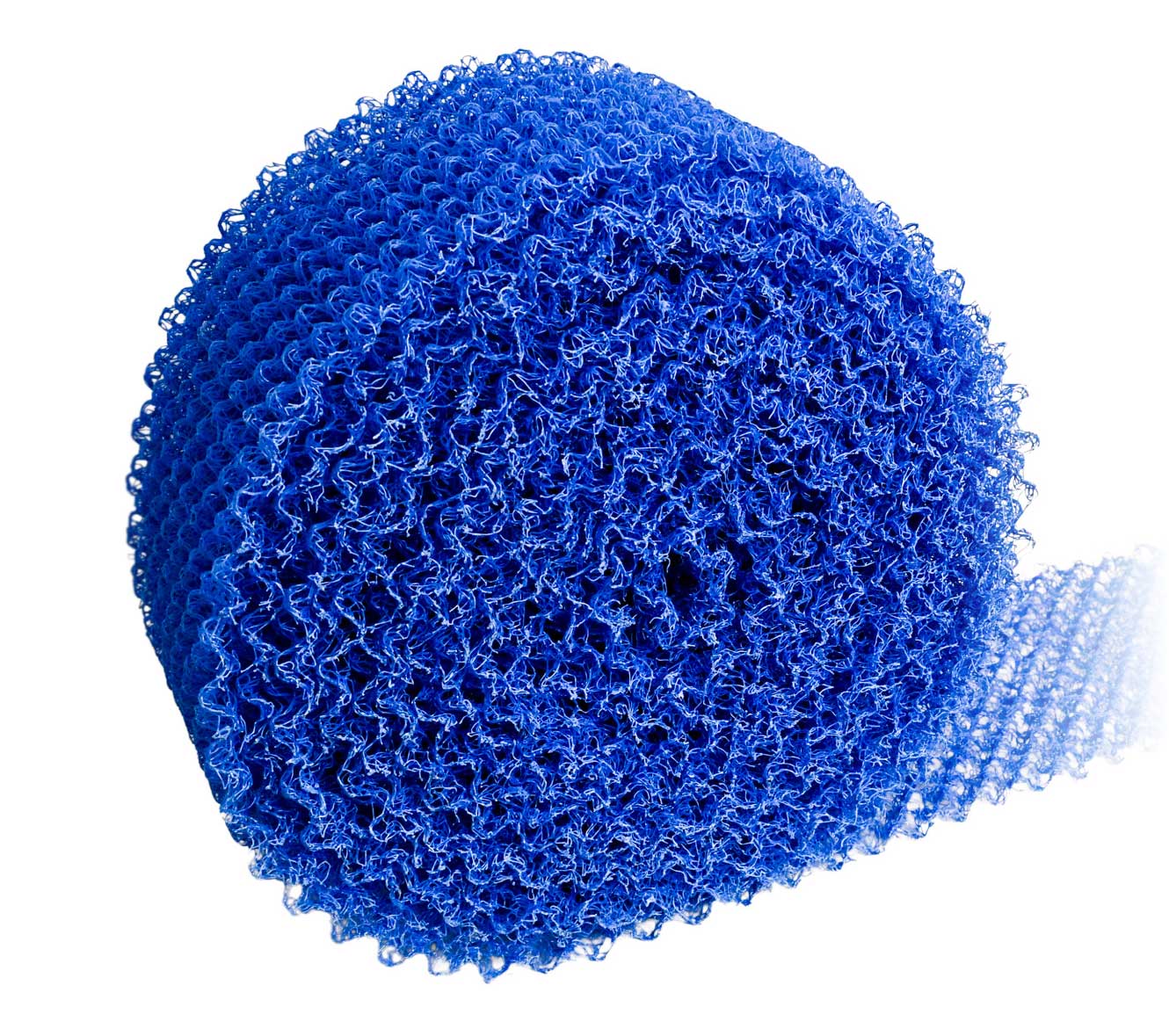

  • Mortar Deflection	Thickness	Roll Size	LF Per Box	Rolls Per Pallet	UOM
    Mortar Break®	.80” (20 mm)	10” X 50’	200	32	Lineal Foot
    Mortar Break®	.80” (20 mm)	13” X 50’	150	32	Lineal Foot
    Mortar Break®	.80” (20 mm)	16” X 50’	100	16	Sq. Ft.
    Mortar Break®	.80” (20 mm)	20” X 50’	100	16	Sq. Ft.
    Mortar Break®	.80” (20 mm)	39” X 50’	50	8	Sq. Ft.

• Meets NFPA 285

  • Hughes Associates Letter – NFPA 285
