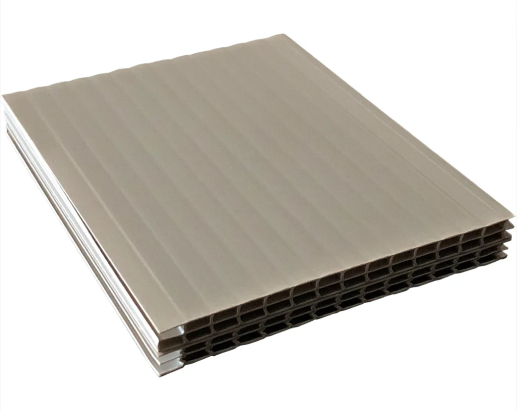

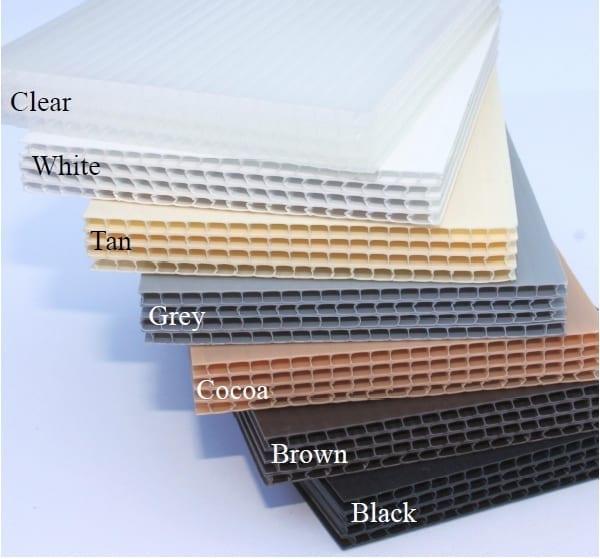

Mortar Maze® Weep Vents ensure positive drainage in all cavity wall construction, while also restricting insects and other debris from entering the head joint. Made from durable polypropylene, Mortar Maze® Weep Vents are available in a range of colors to match the surrounding mortar. Polypropylene tested in conformance with ASTM D2240, D790B, D638, and D1238B.
For Mortar Maze® Weep Vents LEED Sheet - Call 800-252-2306
Install weep vents as part of masonry wall construction and in accordance with manufacturer’s installation instructions.
Coordinate with installation of through wall flashings.
Locate weep vents at [wall bases, above door and window openings, above bond beams, and other through wall flashings.] [At locations detailed on Drawings.] Space at 24” o.c maximum.
Embed weep vents in vertical mortar head joints. Tool joints to prevent obstruction of weep spouts.
| Mortar Maze Weep Vents | Size | Pieces Per Box | Boxes Per Skid | UOM |
|---|---|---|---|---|
| Standard Clear | 3/8” X 2.5” X 3-3/8” | 200 | 80 | Piece |
| Standard Gray | 3/8” X 2.5” X 3-3/8” | 200 | 80 | Piece |
| Standard Other Colors | 3/8” X 2.5” X 3-3/8” | 200 | 80 | Piece |
| Jumbo Clear | 3/8” X 3.5” X 3.5” | 200 | 60 | Piece |
| Jumbo Gray | 3/8” X 3.5” X 3.5” | 200 | 60 | Piece |
| Jumbo Other Colors | 3/8” X 3.5” X 3.5” | 200 | 60 | Piece |
